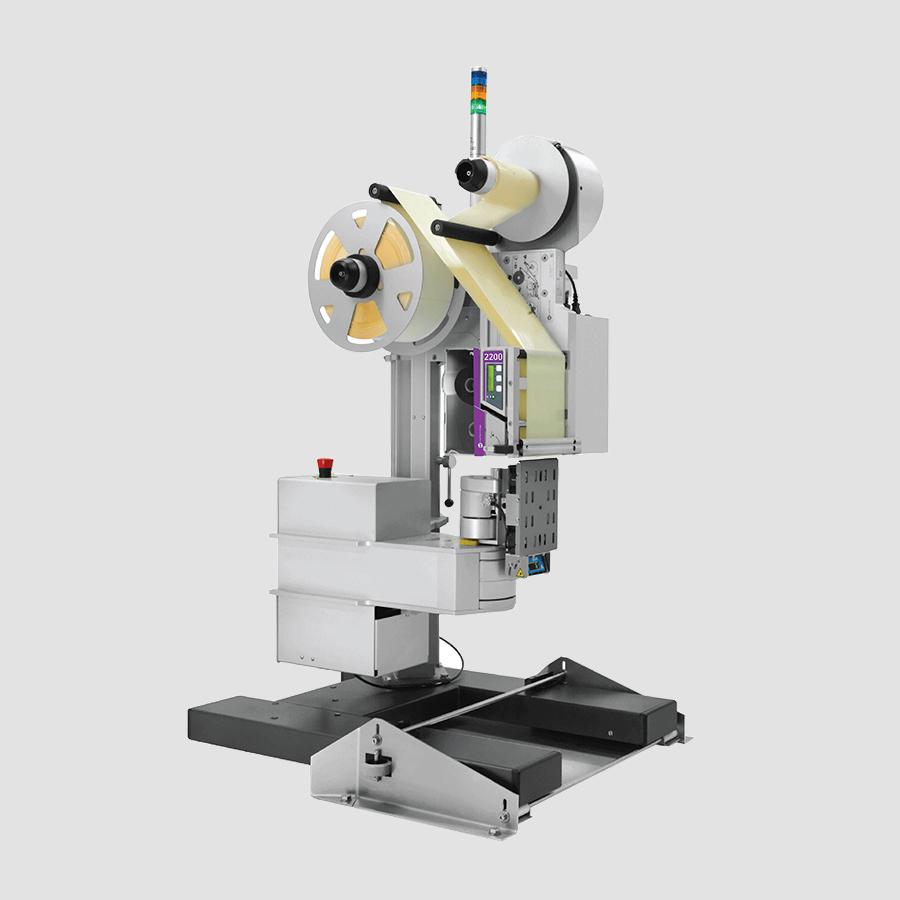

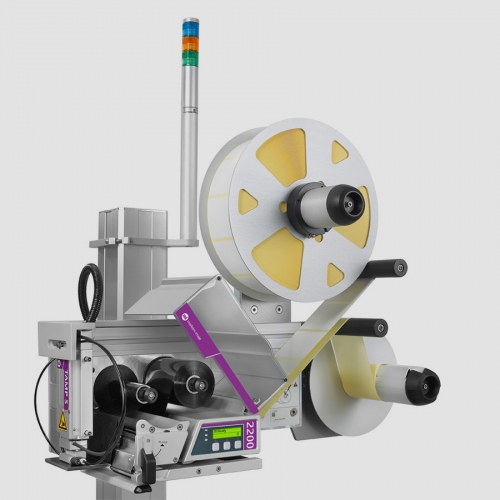

Markem-Imaje's 2200 printer offers flexible solutions for printing and labeling on pallets, from single-sided to double-sided printing with various label sizes.
LABEL PRINTING
FAST MEDIUM SLOW
• Printing Method: Thermal transfer or direct thermal printing
• Printer: 2620: 168 mm, 200 dpi (8 dots/mm); 2630: 162 mm, 300 dpi (12 dots/mm)
• Maximum printing speed: 300 mm/s

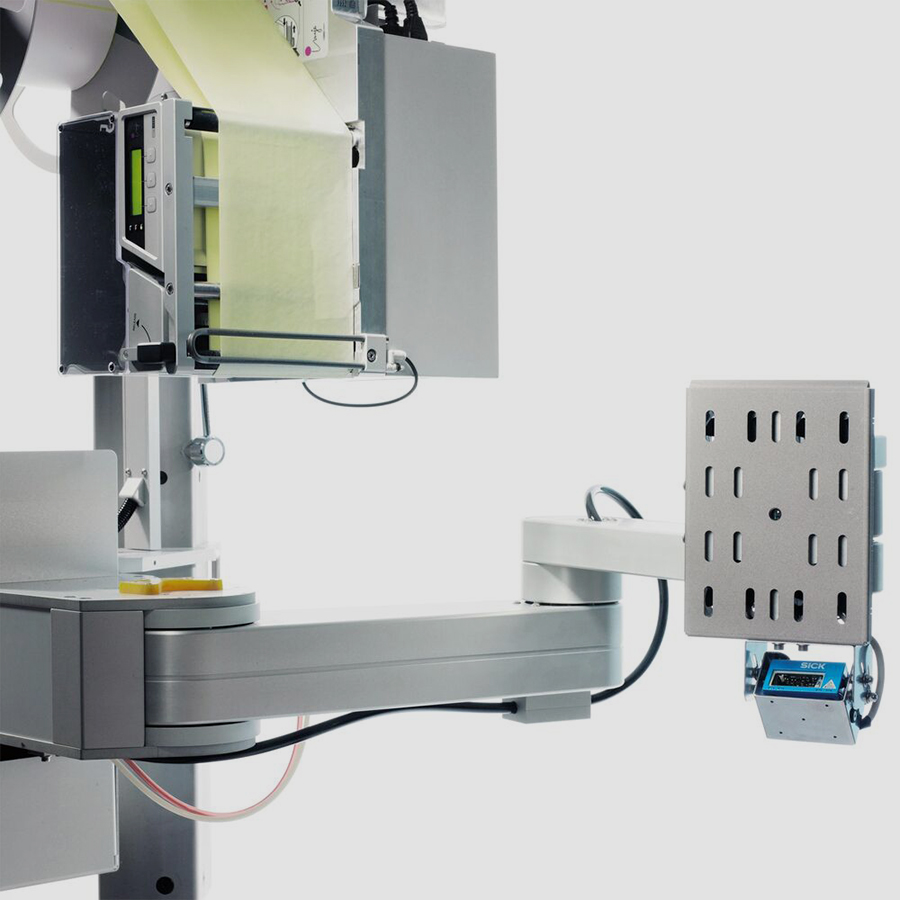

• Flexible rotating arm mechanism can apply labels to one or both sides of the pallet
• Labeling cycle time: Front-side labeling: 7 s; Side labeling: 10 s; Both sides labeling: 20 s
• Fonts: 16 different fonts
• Image file format: BMP, WMF, PCX, PNG, ICO, GIF, TIFF, JPEG
• Supports barcode and 2D code types
• Intuitive control panel, displays machine status information in multiple languages. Control panel buttons: start, pause, print
• Safety features: automatic power off when the labeling mechanism malfunctions. Emergency stop button
• Signal/communication ports: 2 opto inputs, 5 relay outputs, 24 VDC; RS-232 serial port, 300 – 115 200 bps; Ethernet 10/100 (LPD, R Telnet, FTP, web server)
• Features a mode: automatically prints and relabels if the camera system cannot read the label content on the pallet.
• Label type: die-cut self-adhesive labels
• Standard size: A5 size ( 148mm x 210 mm )
• Standard label roll: outer label
• Maximum label size: 178 mm
• Maximum label roll diameter: 350 mm (approximately 2,550 labels/roll)
• Core diameter: 76 mm
• Ribbon length: 560 m
• Ribbon core diameter: 25 mm
• Available in two versions: left or right side of the production line (frontside, backside)
• Operating humidity: 20 to 85%
• Power supply: 110/240 VAC; 50/60 Hz
• Compressed air supply: 6 bars, clean and dry
